Primary PurposeFunction
This product is suitable for marine power plants with AC three-phase 50Hz, 400V or 60Hz, 450V power supply, and transformed into three-phase 230V for lighting, onboard communication, control equipment and household appliances.
This product is suitable for ship power station is three-phase AC 50Hz, 400V or 60Hz, 450V power supply, via a three-phase 230V transformer
for lighting, the ship communications, control equipment and other electrical appliances life.

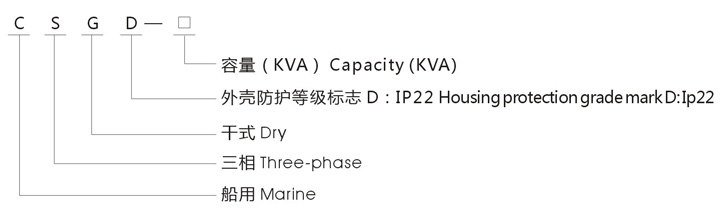

Model meaning Model meaning

Structural characteristics
The insulation grade of this product is B. It is made of stacked high-quality silicon steel sheet iron core and cylindrical coil with air duct. The connection group is Y, DII and Y, yO. Transformer windings are impregnated with anti-mildew insulating paint. , to adapt to use on ships and in hot and humid environments. The factory can also receive orders for non-standard products according to customer needs.

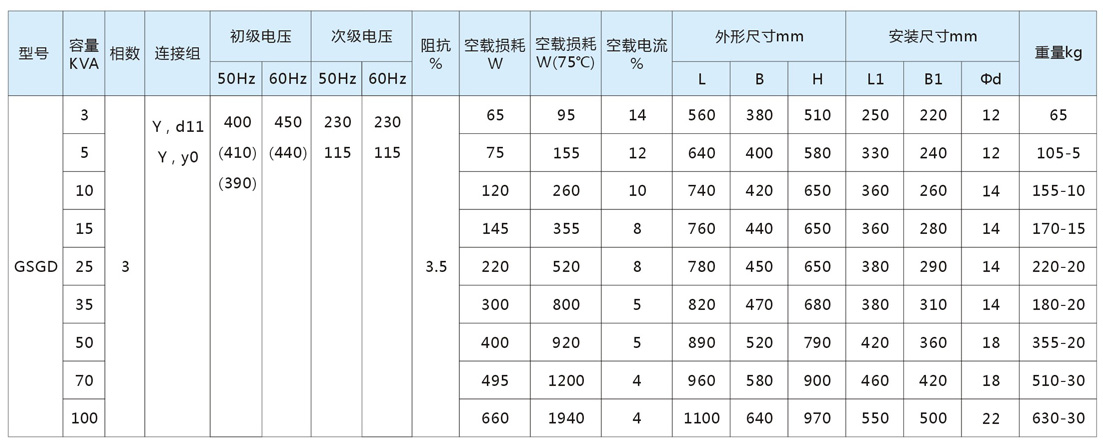

Technical parameters

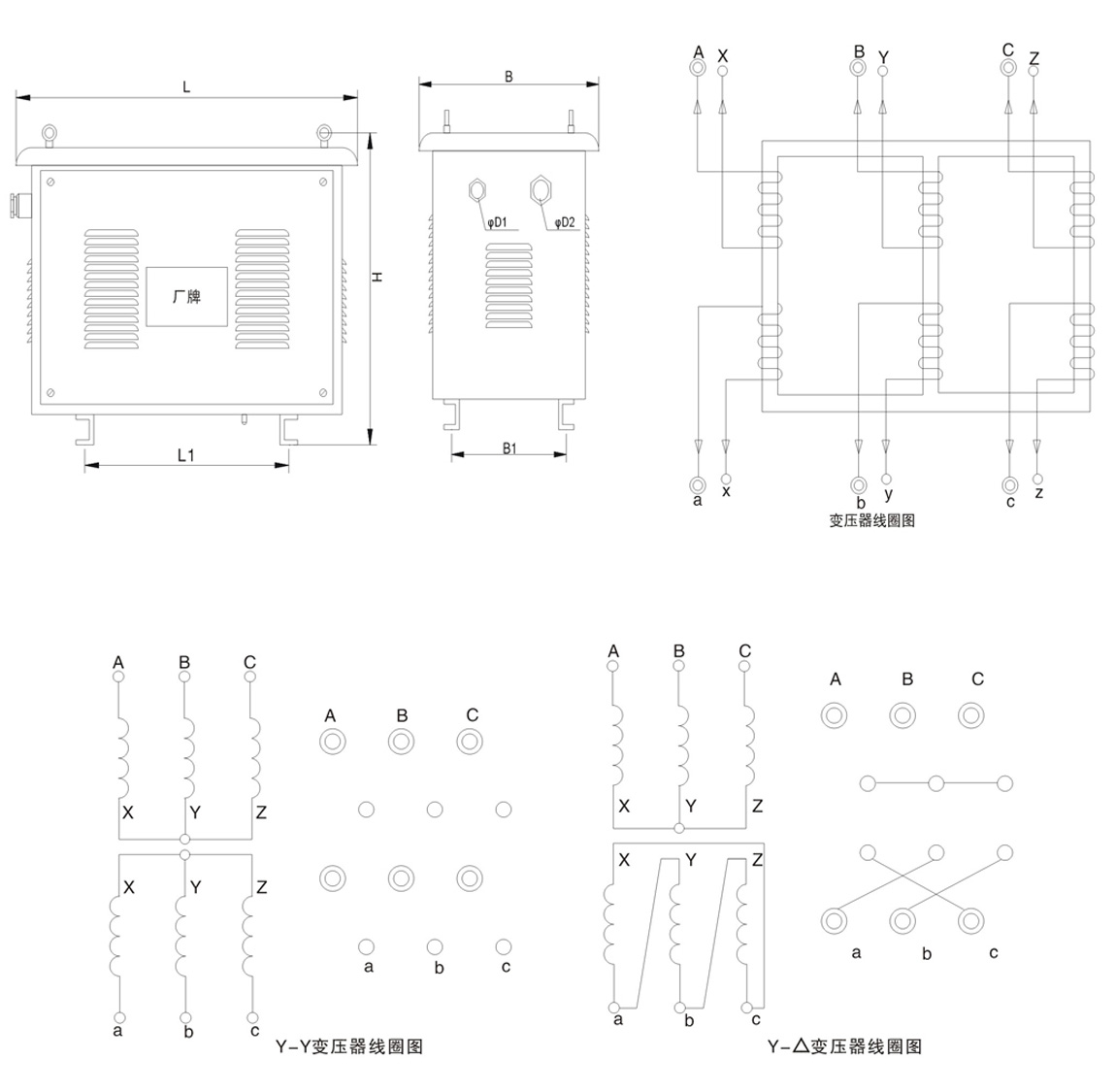

Size shape
