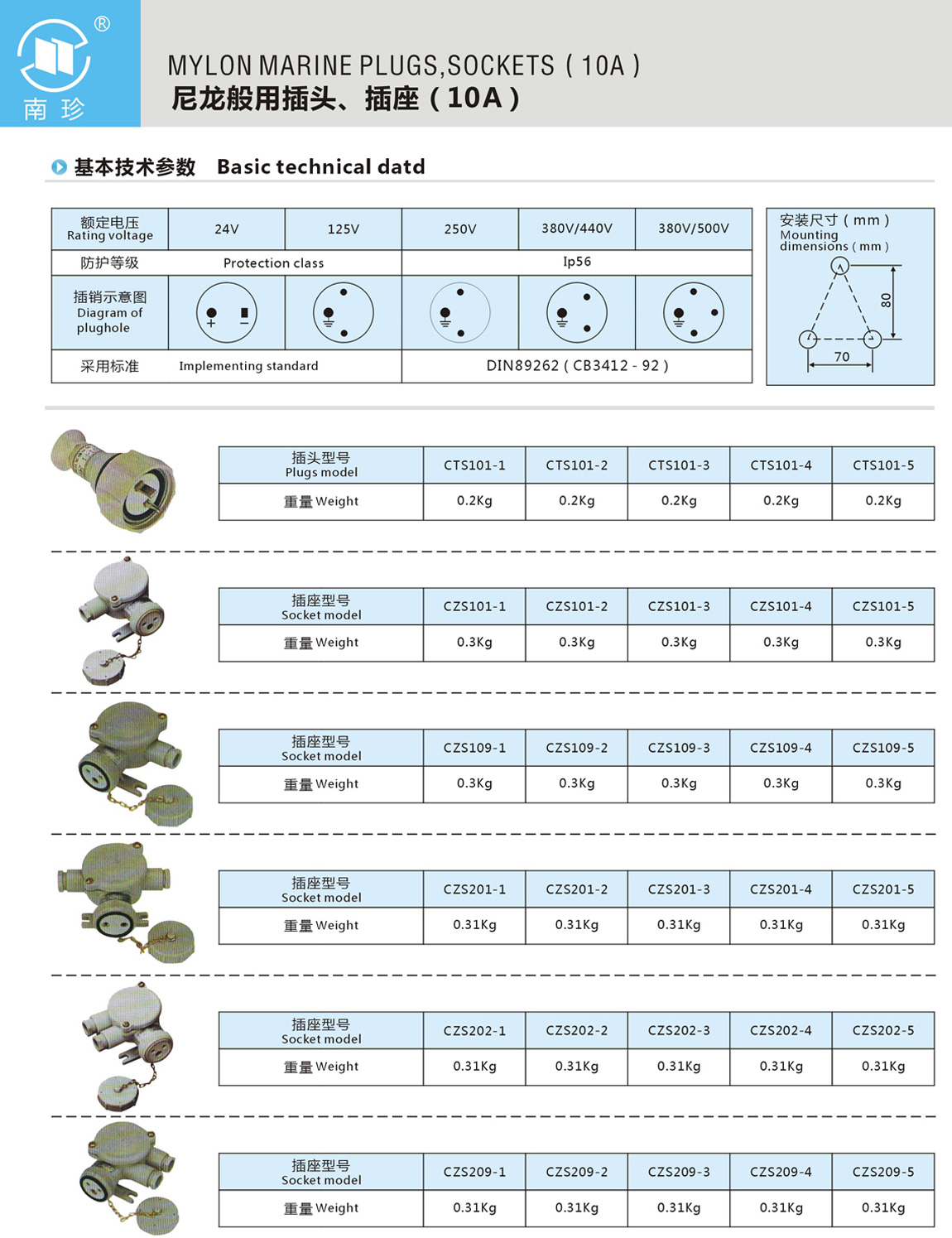

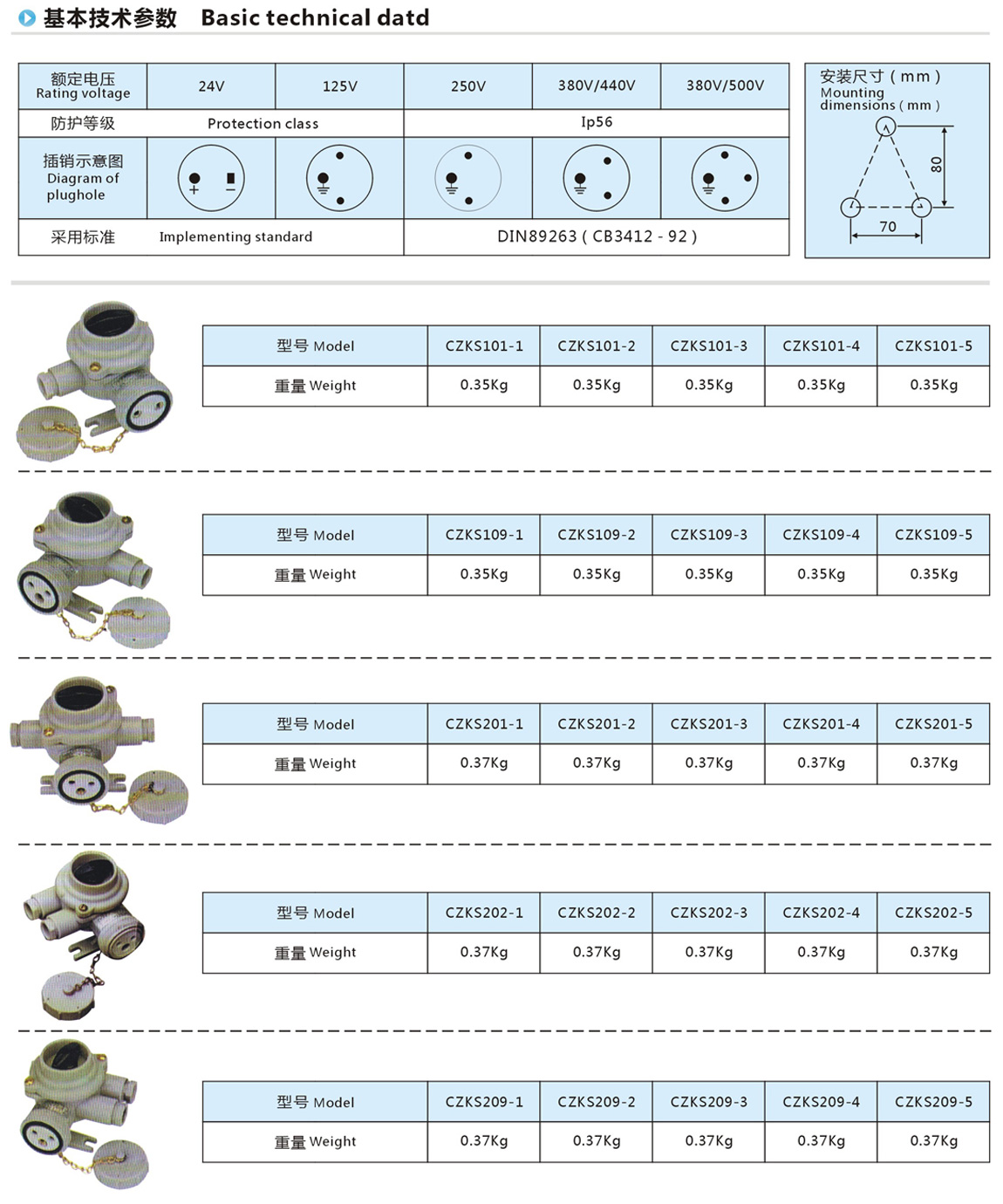

Technical characteristics
For AC and DC low voltage electrical line connection, make and break use
Used for connecting and breaking of AC/DC electric circuits on board the naval ships

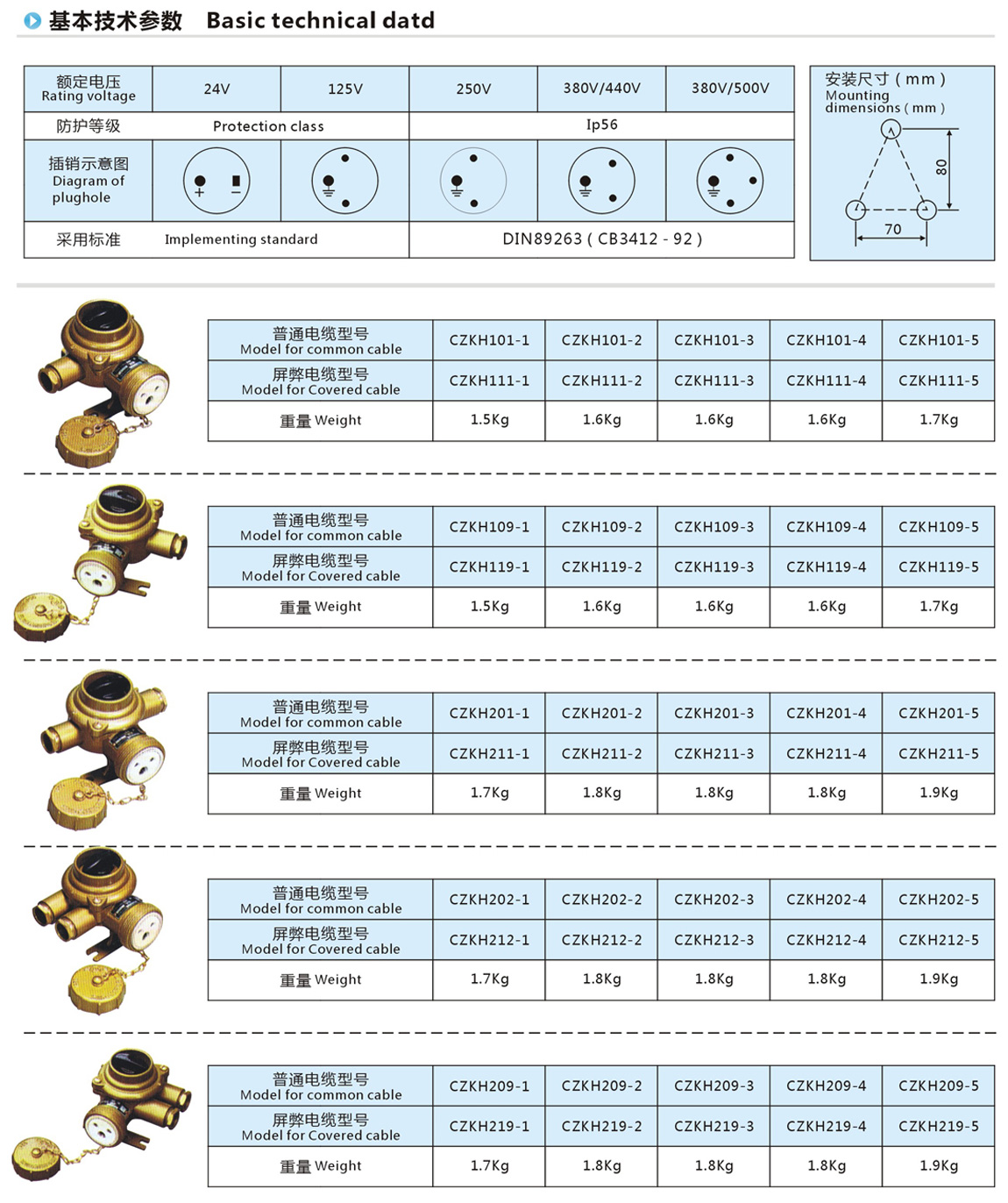

Comply with CB3412-92 , DIN89267 , DIN89262 , DIN89263
Standard:CB3412-92 , DIN89267 , DIN89262 , DIN89263
Plug single-pole pull-out stress≥4N
The pull-out stress of each pin of the plug≥4N
The temperature rise of the conductive part should not exceed 40K
The temperature rise of live parts shall be not greater than 40K
Protection class is IP56
Protection class:IP56
The metal surface should have a reliable grounding device
The outer metal surface shall be provided with reliable earthed parts

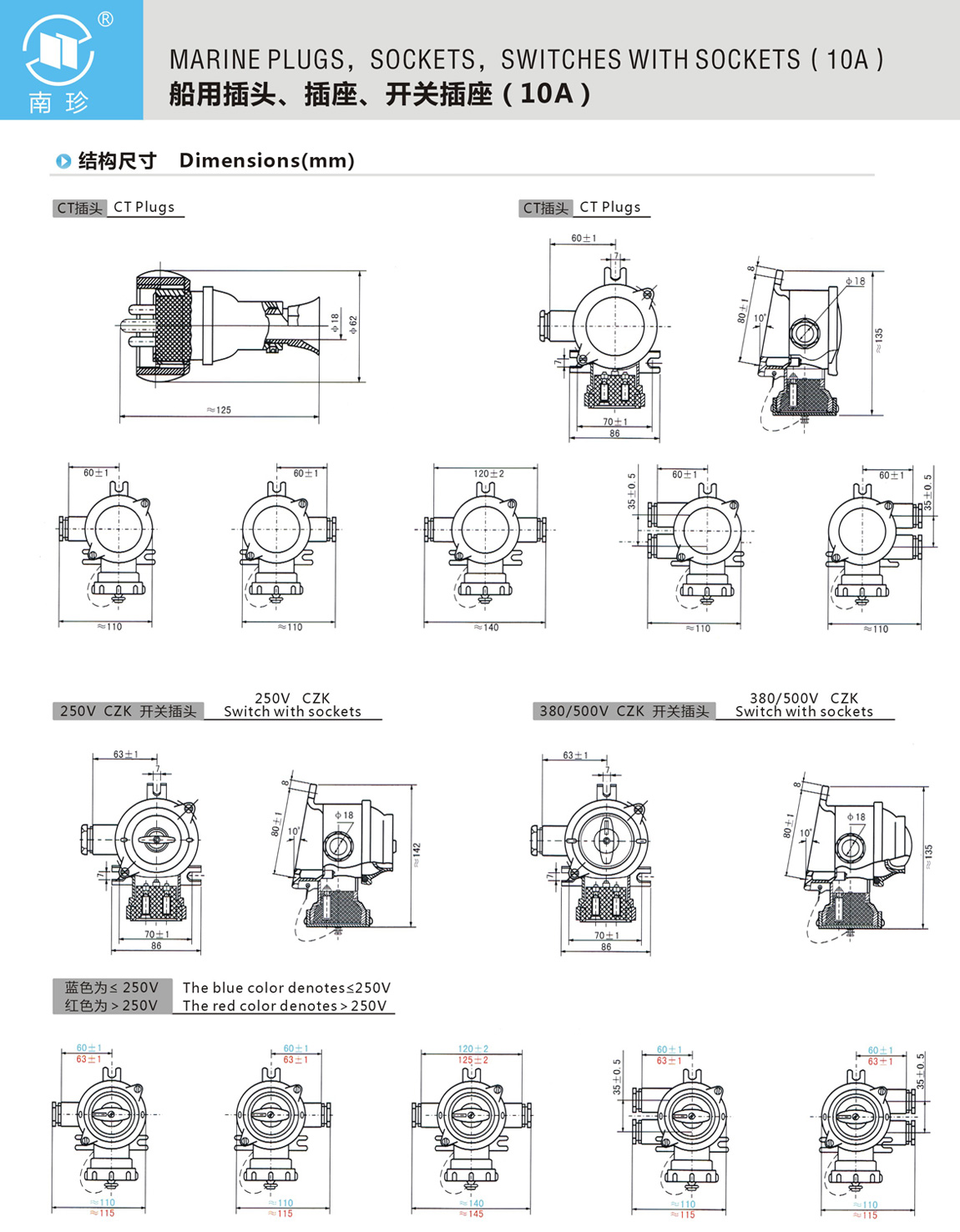

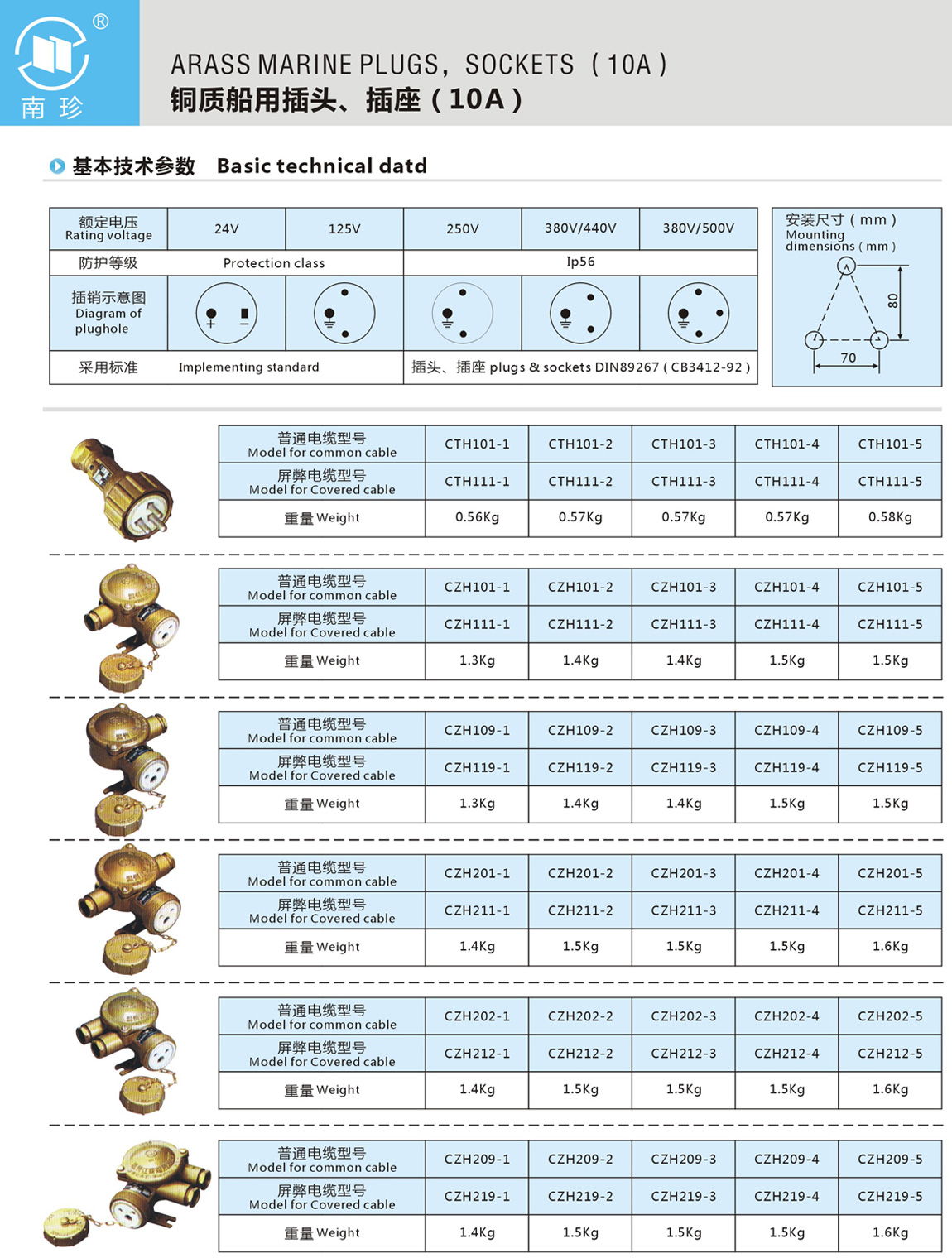

10A plug, socket, switch, socket with switch form

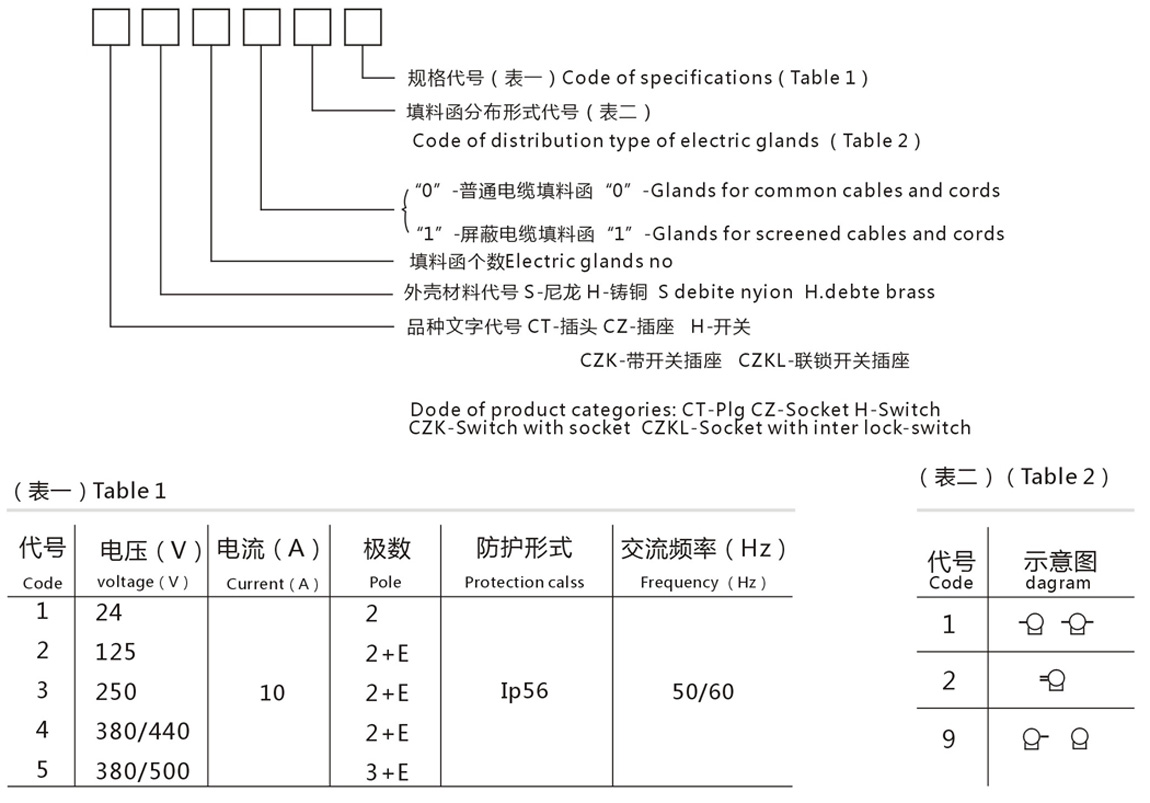

Type of combination of 10A plug,socket,switch and socket wth inter locked switch

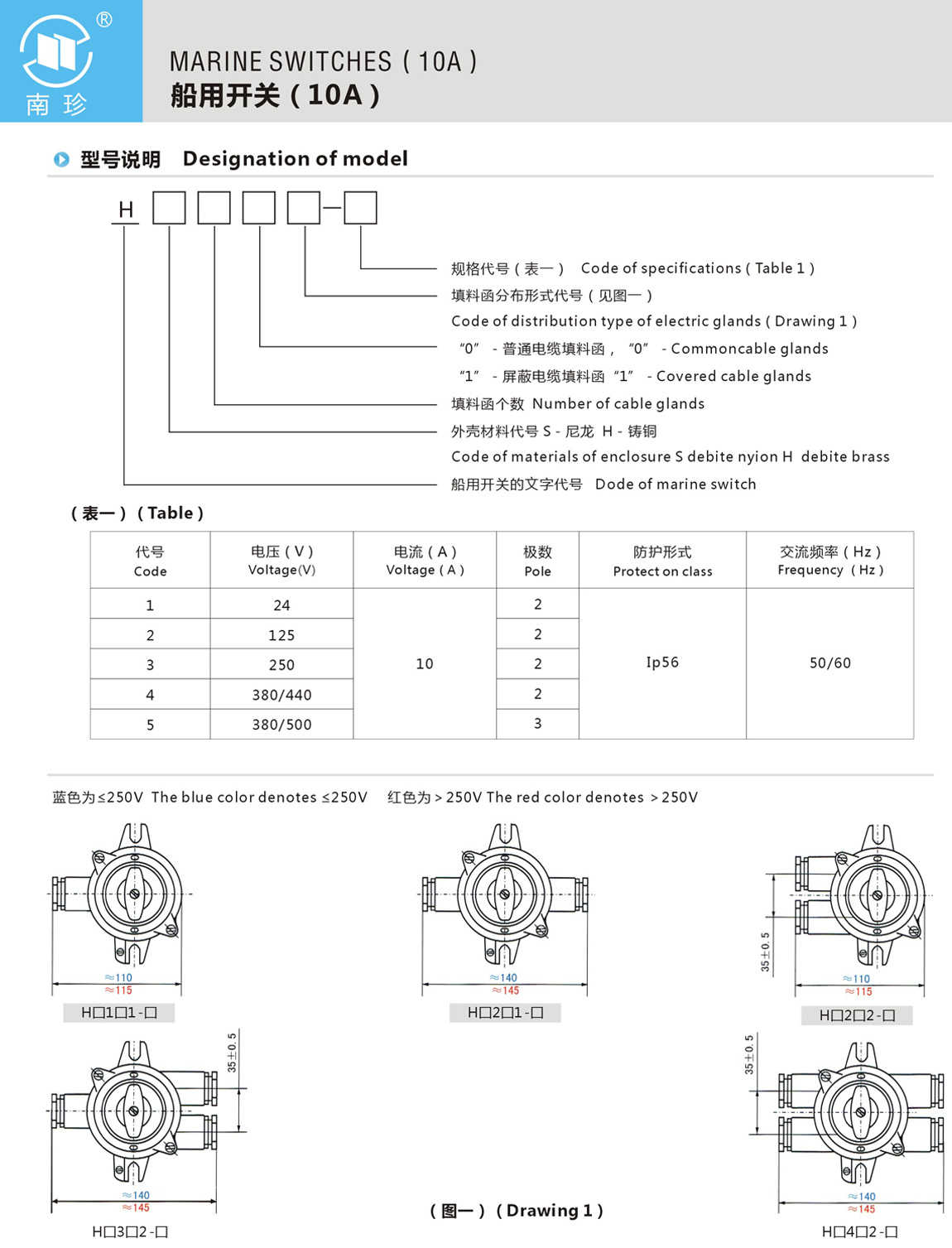

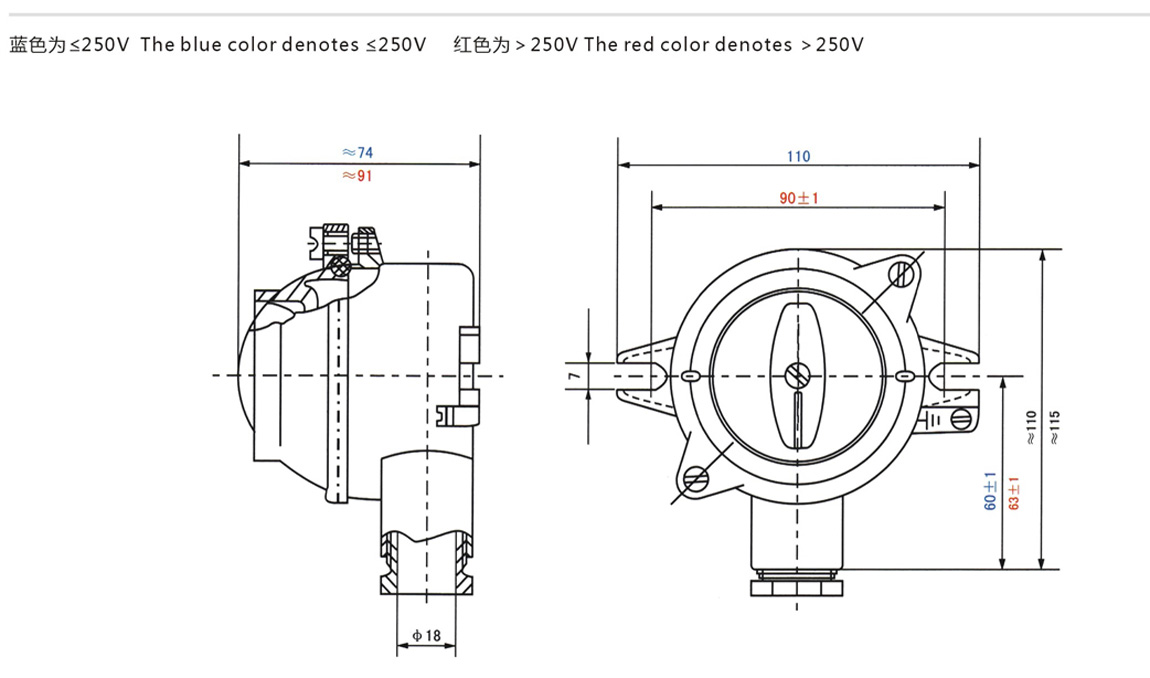

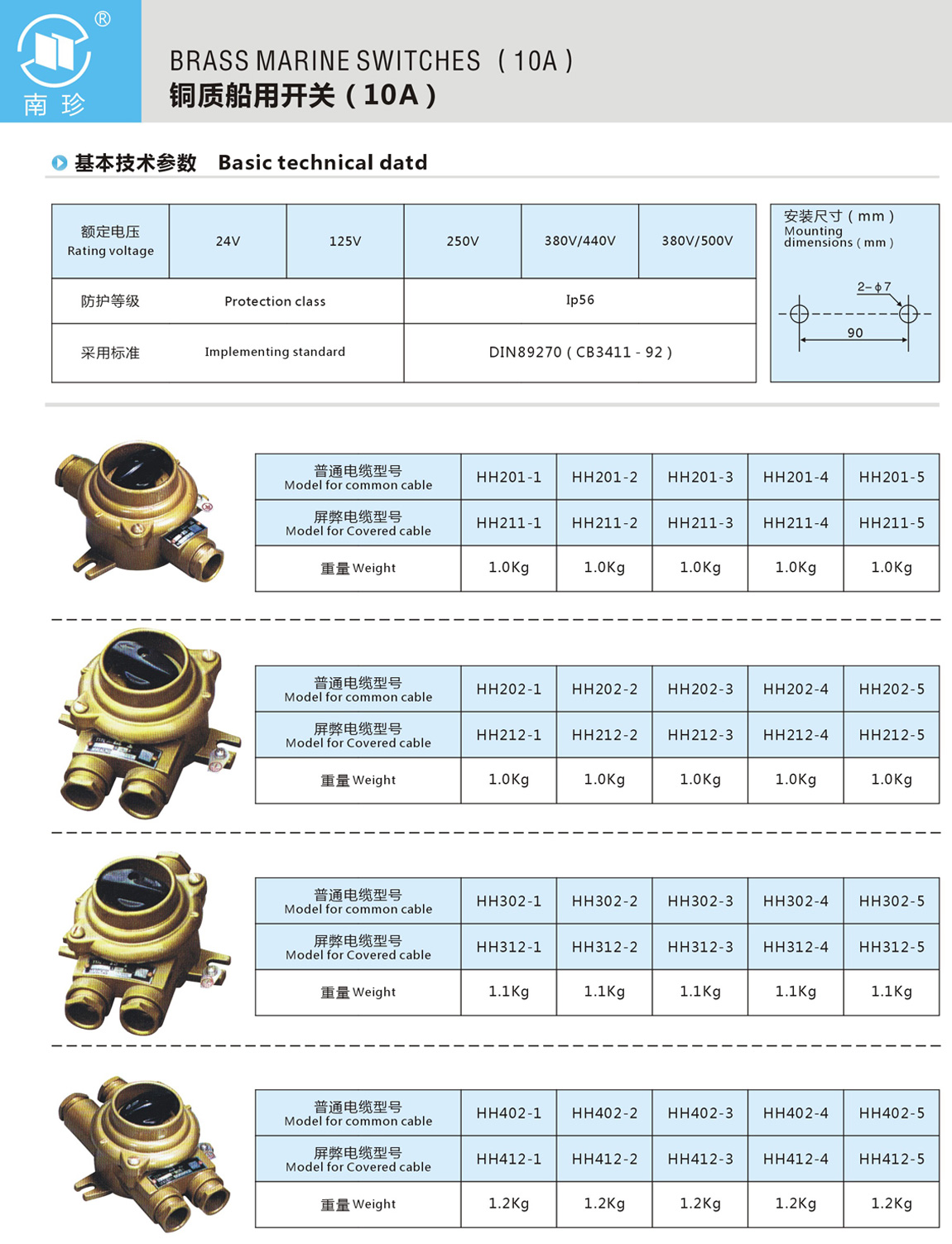

Technical characteristics
For making and breaking in AC and DC low voltage electrical lines of ships
Used for connecting and breaking of AC/DC electric circuits on board thenava

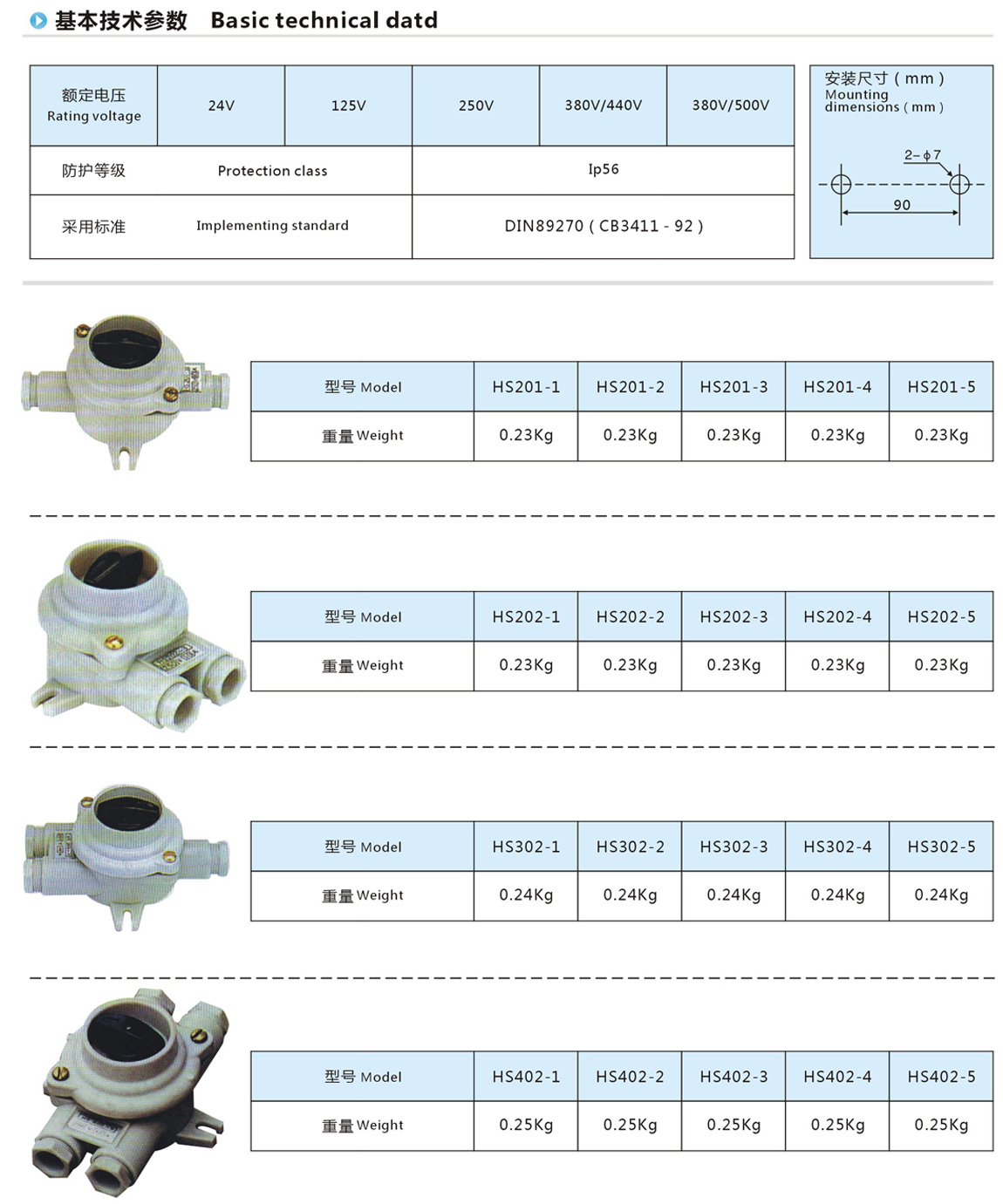

Complies with CB3411 - 92 , DIN89270
Standard:CB3411 - 92 , DIN89270
Normal service life > 10000 times
Normal operating lie> 10 , 000 operations
The maximum allowable value of the temperature rise of the conductive part is 40K
The temeperature rise of live parts shall be not greater than 40K
Protection class is IP56
Protection class :Ip56
The metal shell should have a reliable grounding device
The outer metal surface shall be provided with relible earthed parts
